Product Introduction

Product parameters

Funtion:4A, 12V Lead-Acid Battery Charger IC With Photovoltaic Cell MPPT Function

Opration Mode:Switch

Battery:12V lead-acid battery

Vout Range:0V-14.8V

Vin Range:6.6V-30V

Max Charge Current:4A

Operating Current:1mA

Solar Panel charge:Yes

Chip Temperature Regulation:No


Switching Frequency:300kHz

Chip Enable:No

On-chip Power MOSFET:No

General Descriptions:

The CN3767 is a PWM switch-mode battery charger controller for 12V lead-acid battery in a small package using few external components.

The CN3767 is specially designed for charging 12V lead-acid battery with trickle charge, constant current charge, over-charge and float charge mode. In over-charge and float charge mode, the regulation voltage is internally set. The constant charge current is programmable with a single sense resistor. The CN3767 can be powered by solar panel with MPPT function.

Deeply discharged batteries are automatically trickle charged at 17.5% of the programmed constant charge current until the cell voltage exceeds 75% of the regulation voltage in over-charge mode. The over-charge is terminated once the charging current drops to 38% of the constant charge current, then CN3767 will enter into float charge mode. A new charge cycle automatically restarts if the battery voltage falls below 83.95% of the over-charge voltage in float-charge mode. CN3767 will automatically enter sleep mode when input voltage is lower than battery voltage.

Other features include undervoltage lockout and status indication, etc.

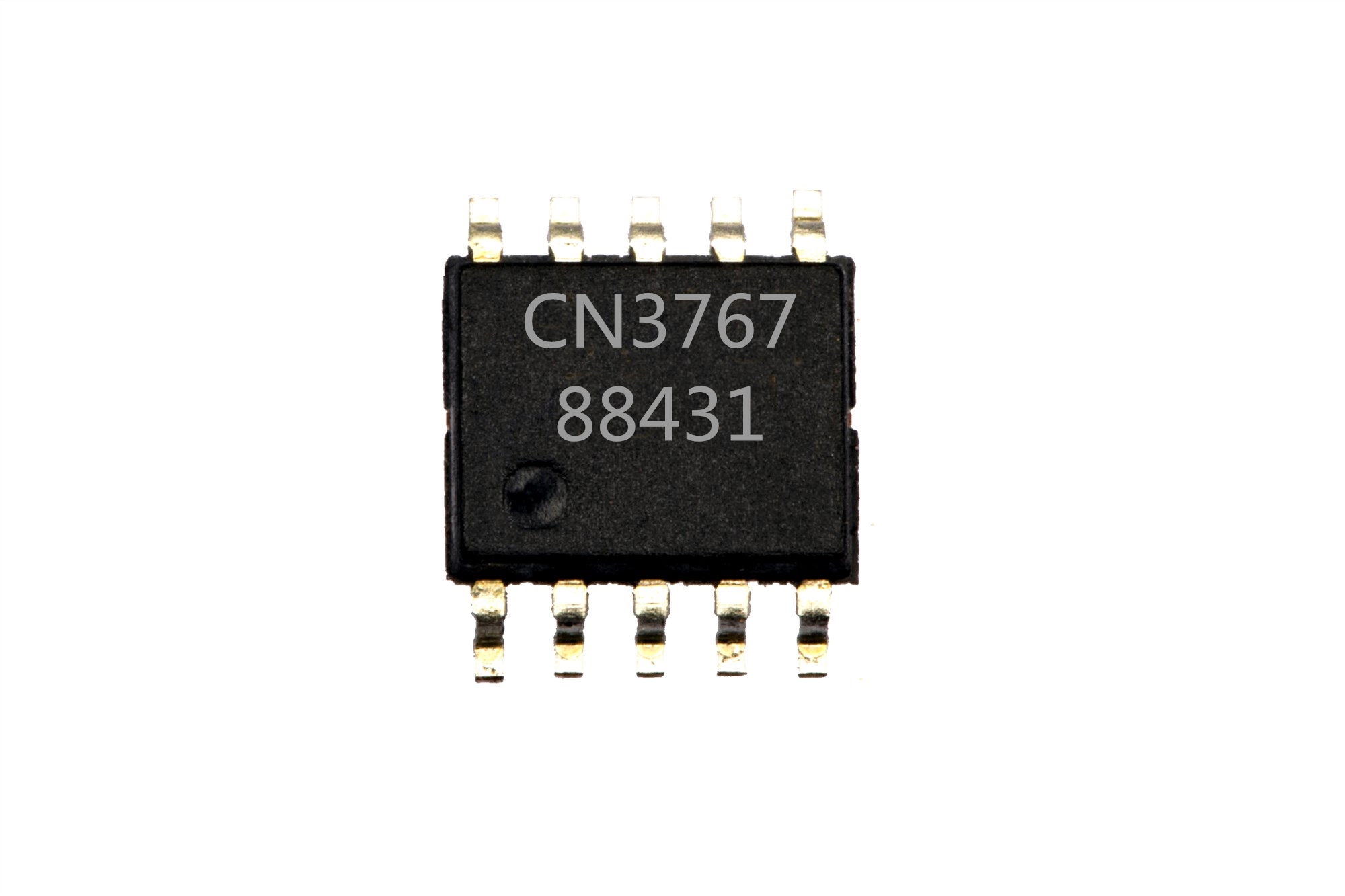

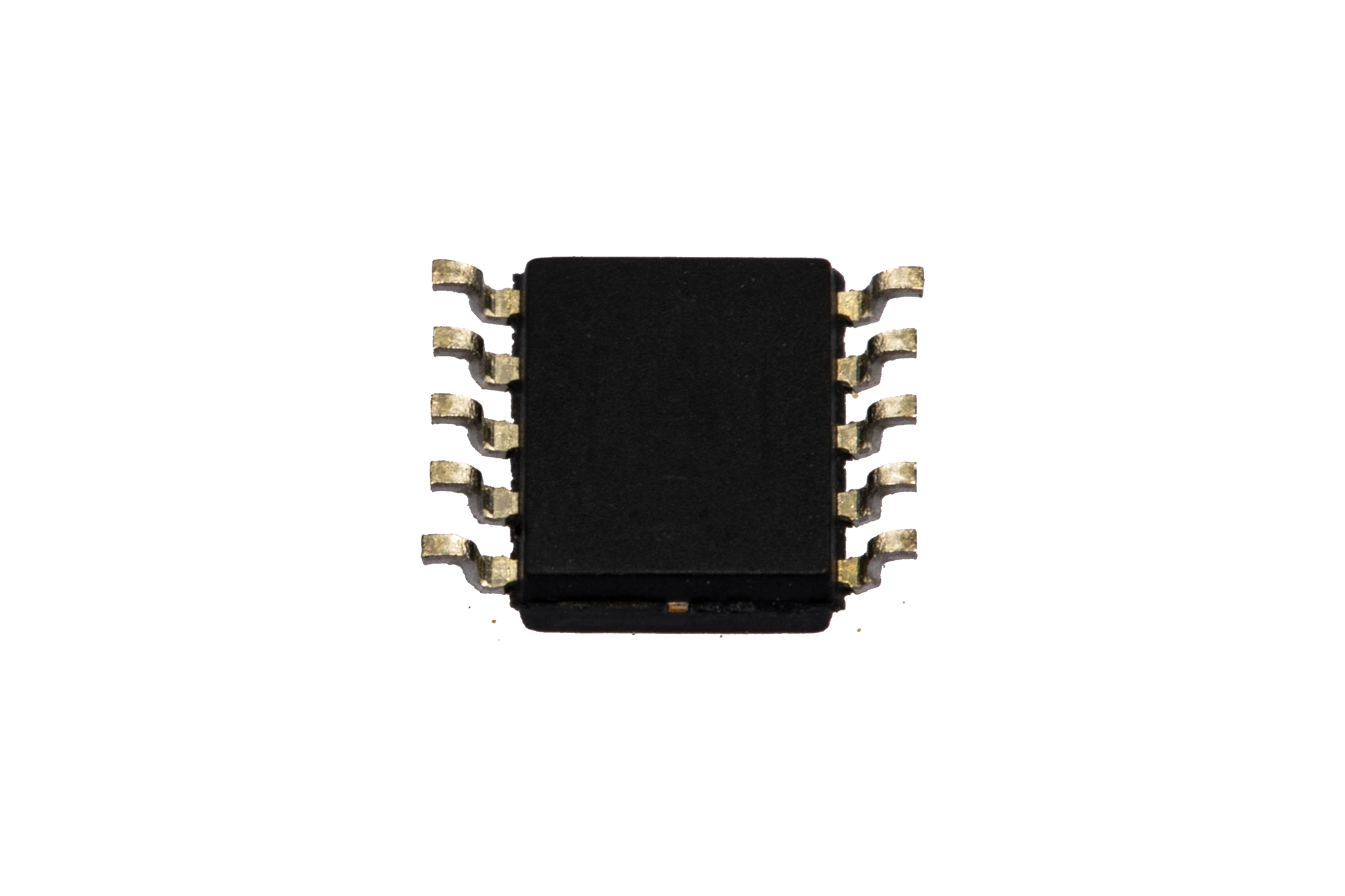

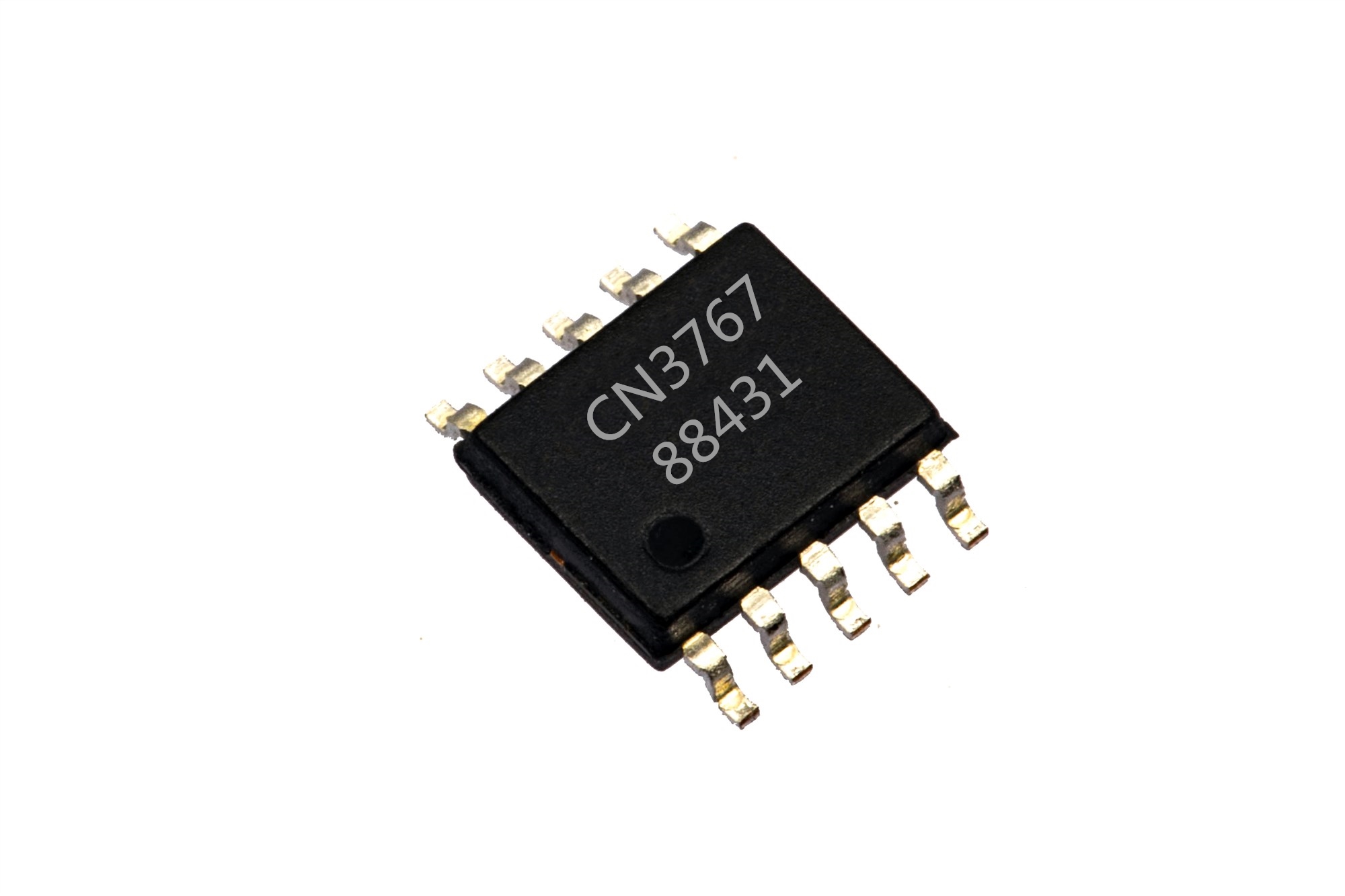

CN3767 is available in a space-saving 10-pin SSOP package.


l  Lead-Acid Battery Charger

l  UPS

l  Portable Industrial and
Medical Equipment

l  Standalone Battery Chargers


l  Photovoltaic Cell Maximum Power Point Tracking(MPPT)

l  Wide Input Voltage: 6.6V to 30V

l  Complete Charger Controller for 12V Lead-Acid Battery

l  Charge Current Up to 4A

l  High PWM Switching Frequency: 300KHz

l  Fixed Over-Charge Voltage

l  Charging Current is programmed
 with a sense resistor

l  Automatic Conditioning of Deeply Discharged Batteries

l  Automatic Recharge

l  Charger Status Indication

l  Soft Start

l  Battery Overvoltage Protection

l  Operating Ambient Temperature
40 to 85

l  Available in 10 Pin SSOP Package

l  Pb-free , RoHS Compliant,
and Halogen Free
