Product Introduction

Product parameters

{pboot:if('Lithium Ion Battery Charger for Solar-Powered Systems'!='')}

Funtion:Lithium Ion Battery Charger for Solar-Powered Systems

{/pboot:if}

Opration Mode:Linear

Battery:single cell Li-ion and Li Polymer battery

Battery No.:1

Vout Range:0V-4.2V

Vin Range:4.4V - 6V

Max Charge Current:1A

Operating Current:500uA

Solar Panel charge:Yes

Chip Temperature Regulation:Yes

Package:eSOP8

Chip Enable:No

On-chip Power MOSFET:Yes


General Description:

The CN3163 is a complete constant-current /constant voltage linear charger for single cell Li-ion and Li Polymer batteries. The device contains an on-chip power MOSFET and eliminates the need for the external sense resistor and blocking diode. An on-chip adaptive cell can adjust charging current automatically based on the output capability of input power supply, so CN3163 is ideally suited for solar powered system. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The regulation voltage is internally fixed at 4.2V with 1% accuracy, it can also be adjusted upwards with an external resistor. The charge current can be set externally with a single resistor. When the input supply is removed, the CN3163 automatically enters a low power sleep mode , dropping the battery drain current to less than 3uA. Other features include undervoltage lockout, automatic recharge, battery temperature sensing and charging/termination indicator.

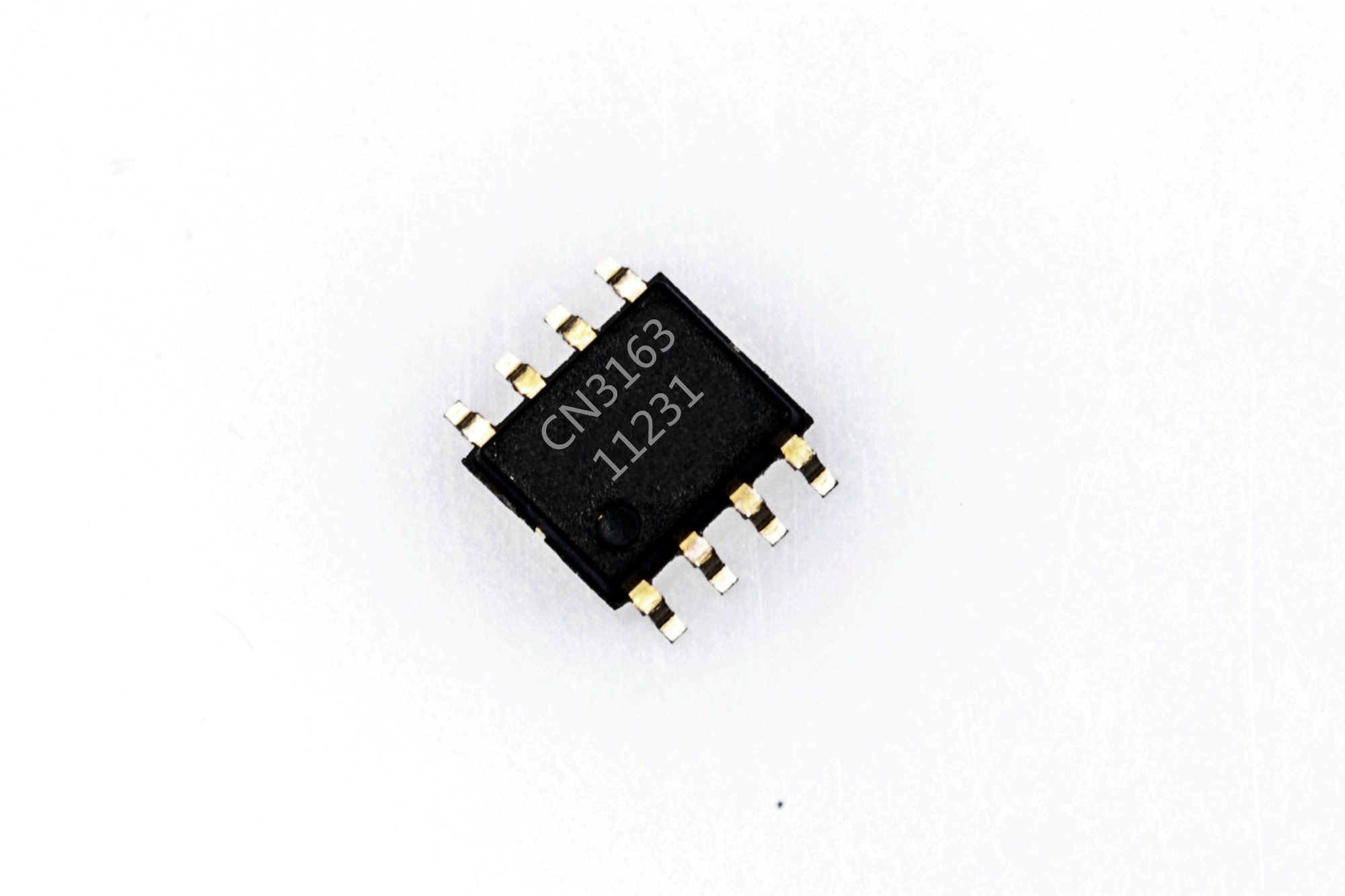

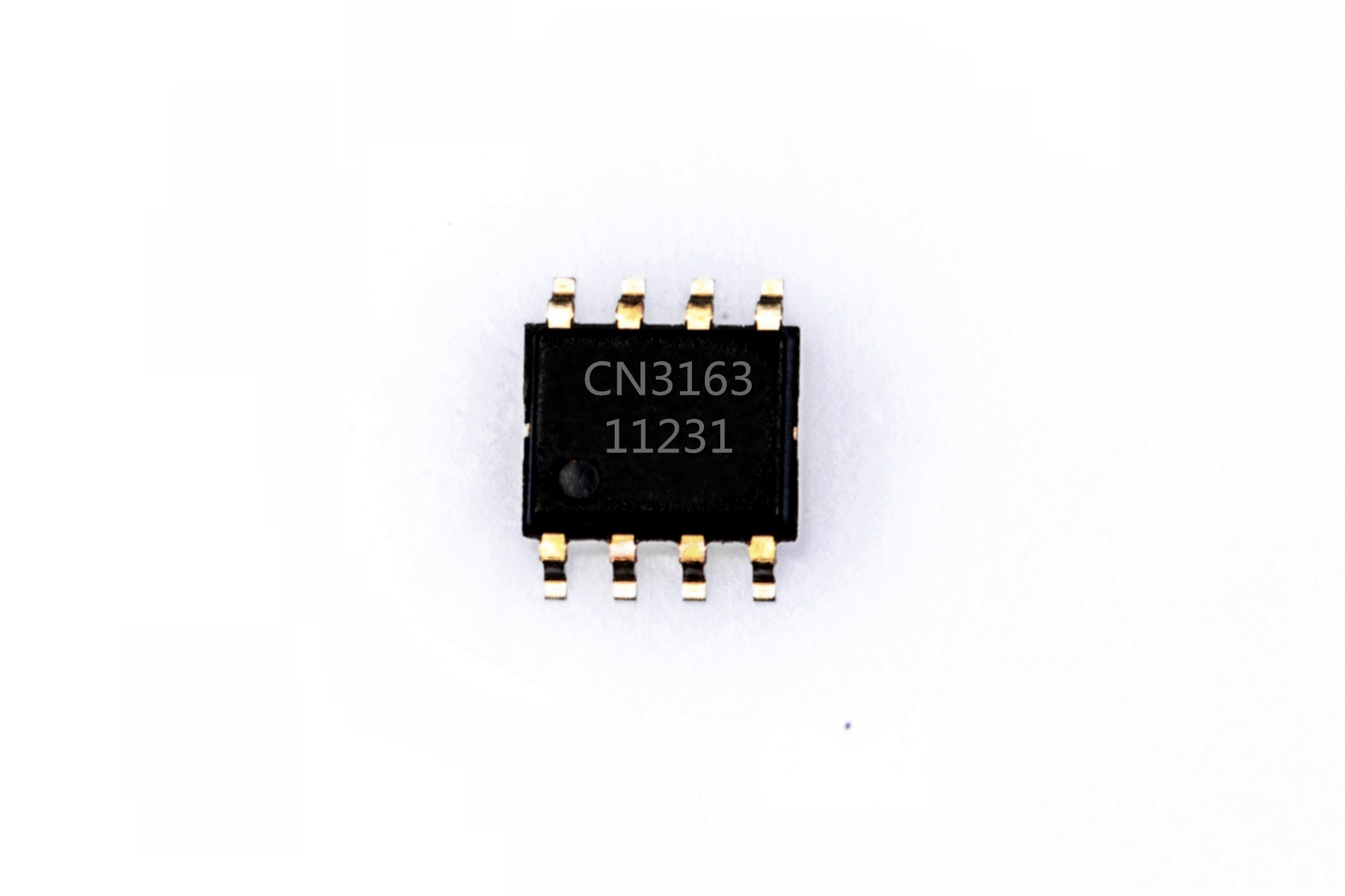

The CN3163 is available in a thermally enhanced 8-pin SOP package.



Applications:

l  Solar Powered System

l  Digital Still Cameras

l  Bluetooth Applications

l  Portable Devices

l  Chargers

Features:

l  Automatic charge current adjustment based on the output capability of input power supply

l  Suitable for Solar-Powered System

l  On-chip Power MOSFET

l  No external Blocking Diode or Current Sense Resistors Required

l  Preset 4.2V regulation voltage with 1% accuracy, upwards adjustable with a resistor

l  Precharge Conditioning for Reviving Deeply Discharged Cells and Minimizing Heat Dissipation During Initial Stage of Charge

l  Continuous Charge Current Up to 1A

l  Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating

l  Automatic Low-Power Sleep Mode When Input Supply Voltage is Removed

l  Status Indication for LEDs or uP Interface

l  C/10 Charge Termination

l  Automatic Recharge

l  Battery Temperature Sensing

l  Available in eSOP8 Package

l  Pb-free, rohs-Compliant and Halogen Free
