Product Introduction

Product parameters

{pboot:if('1A LDO Linear Regulator for Solar-Powered Systems'!='')}

Funtion:1A LDO Linear Regulator for Solar-Powered Systems

{/pboot:if}

Opration Mode:Linear

Vout Range:5V

Vin Range:5.5V - 7V

Max Output Current:1A

Operating Current:520uA @6V

Solar Panel charge:Yes

Chip Temperature Regulation:Yes

Package:eSOP8

Chip Enable:Yes

On-chip Power MOSFET:Yes


General Description:

 The CN2628 is a low-noise, linear regulator that delivers up to 1A of output current. The regulator maintain ±1% output accuracy over a wide input voltage range of 5.5V to 7V. The 520μA no-load supply current is independent of drop-out voltage.

The on-chip adaptive cell can adjust output current automatically based on the output capability of input power supply, so CN2628 is ideally suited for the solar-powered systems, or the applications that need to charge a cell phone with an input power supply whose output capability is limited.

The CN2628 adopts constant current mode for users to set the maximum output current flexibly. When the output is shorted, the output current will be limited to 10% of the constant current. Also CN2628 adopts temperature regulation instead of over-temperature protection, which will regulates the output current to limit the die temperature during high power operation or high ambient temperature.

The other features include on-chip soft-start, output over-current protection and chip enable, etc.

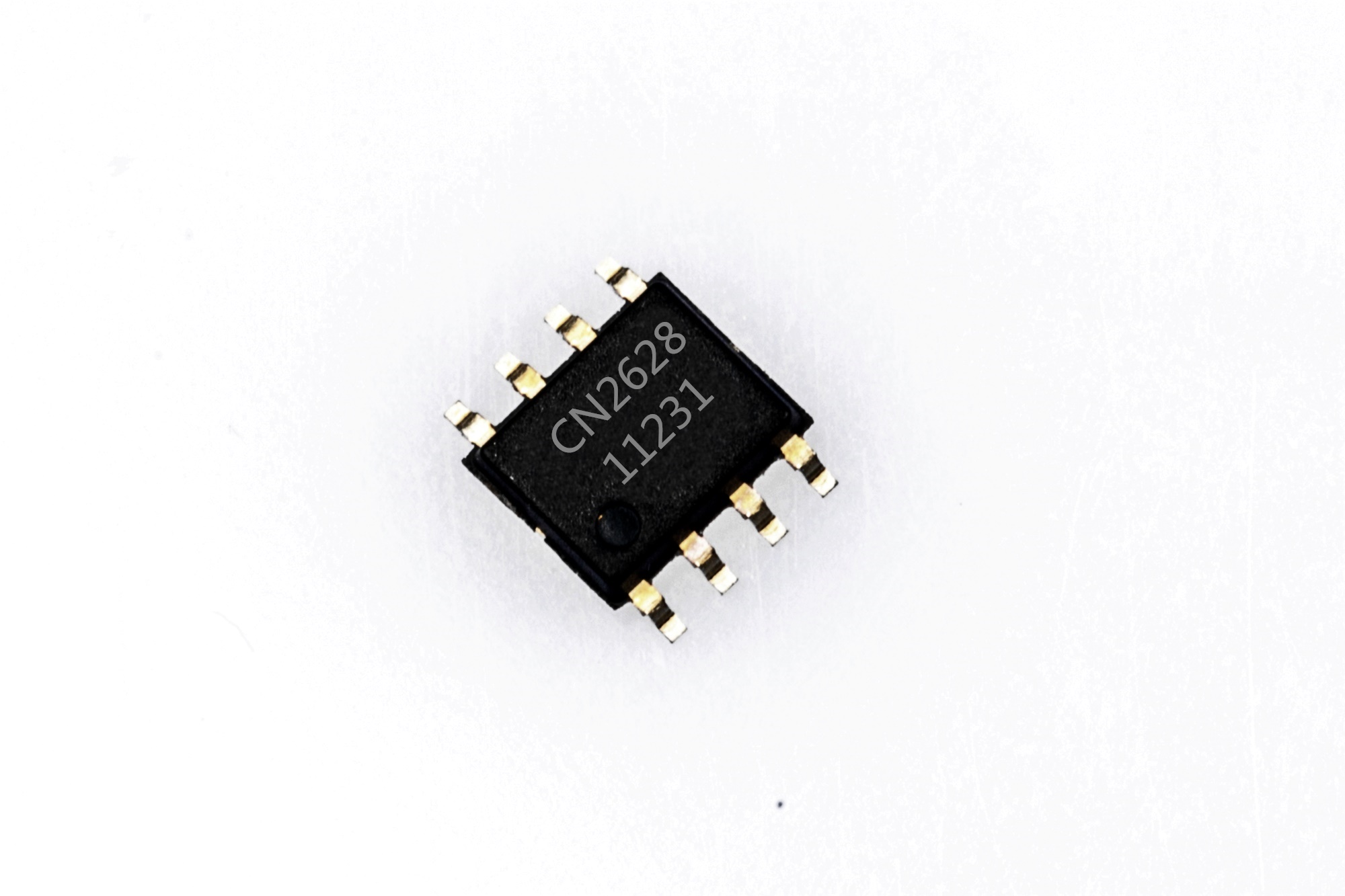

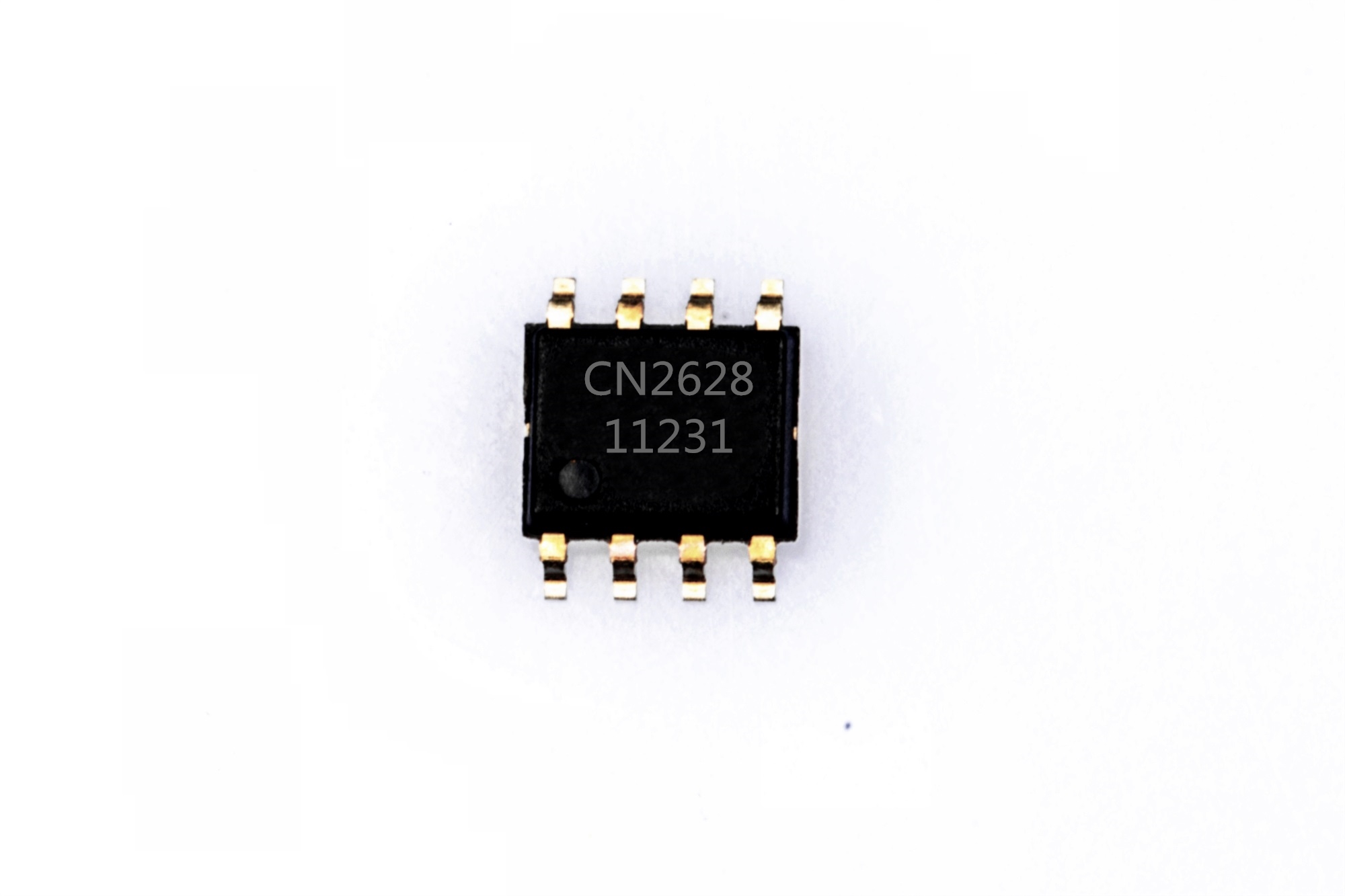

The CN2628 is available in a thermally enhanced 8-pin SOP package.



Applications:

l  Chargers Powered by Solar Panel

l  Cell Phone Charger

l  Wireless LAN

l  Charger Cable with Indications

l  IoT Applications

l  Applications Powered by Solar Panel

Features:

l  5.5V to 7V Input Voltage Range

l  Suitable for Solar- Powered Applications

l  Factory-Preset Output Voltage of 5V

l  Output Voltage Accuracy: ±1%

l  Maximum Output Current: 1A

l  53dB PSRR at 10kHz

l  Operating Supply Current at 6V: 520uA

l  Shutdown Supply Current: 3.3uA@VIN=6V

l  On-Chip Soft-Start

l  Stable with 1μF(Min) Output Capacitance

l  Constant Current Mode

l  Short Circuit Current: 10% of Constant Current

l  Overcurrent Protection

l  Output-to-Input Reversed Current Protection

l  On-Chip Temperature Regulation Instead of Over-Temperature Protection

l  WORK and IDLE state indications

l  Available in eSOP8 Package

l  Pb-free, rohs-Compliant and Halogen Free
