Product Introduction

Product parameters

Funtion:4A, 2-cell Lithium-ion Battery Charger IC With Photovoltaic Cell MPPT Function

Opration Mode:Switch

Battery:2 cell li-ion battery

Battery No.:2

Vout Range:0V-8.4V

Vin Range:6.5V-32V

Max Charge Current:4A

Operating Current:635uA

Solar Panel charge:YES

Chip Temperature Regulation:YES

Package:eSSOP10

Switching Frequency:550kHz

Chip Enable:No

On-chip Power MOSFET:No


General Description:

CN3862 is a PWM switch-mode charger controller IC for 2-cell lithium-ion batteries with few external components in small footprint package.

The CN3862 is specially designed for charging 2-cell lithium ion batteries with trickle charge, constant current and constant voltage mode. In constant voltage mode, the regulation voltage is fixed at 8.4V with 1% accuracy. The constant charging current is set with an external current sense resistor.

When photovoltaic cell is used as power supply, CN3862 can automatically adjust charge current to track solar panel’s maximum power point.

Deeply discharged batteries are automatically trickle charged at 25% of the programmed constant charging current until the cell voltage exceeds 66.6% of regulation voltage. The charge cycle is terminated once the charging current drops to 15% of full-scale current, and a new charge cycle automatically restarts if battery voltage falls below 95.8% of regulation voltage. CN3862 will automatically enter sleep mode when input voltage is lower than battery voltage.

Other features include JEITA-compliant battery temperature monitoring, under voltage lockout, battery over voltage protection, 2 open-drain status indications, etc.

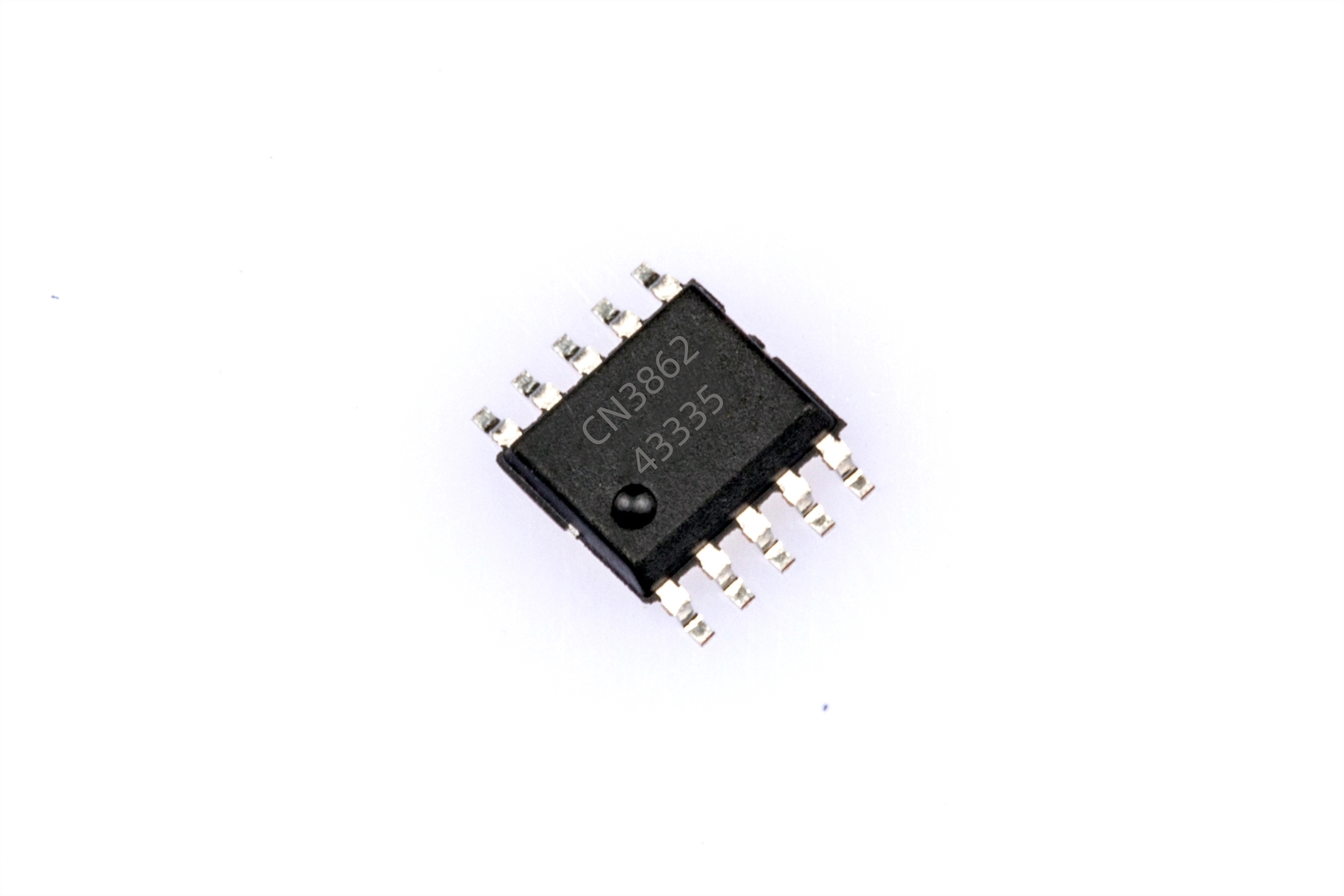

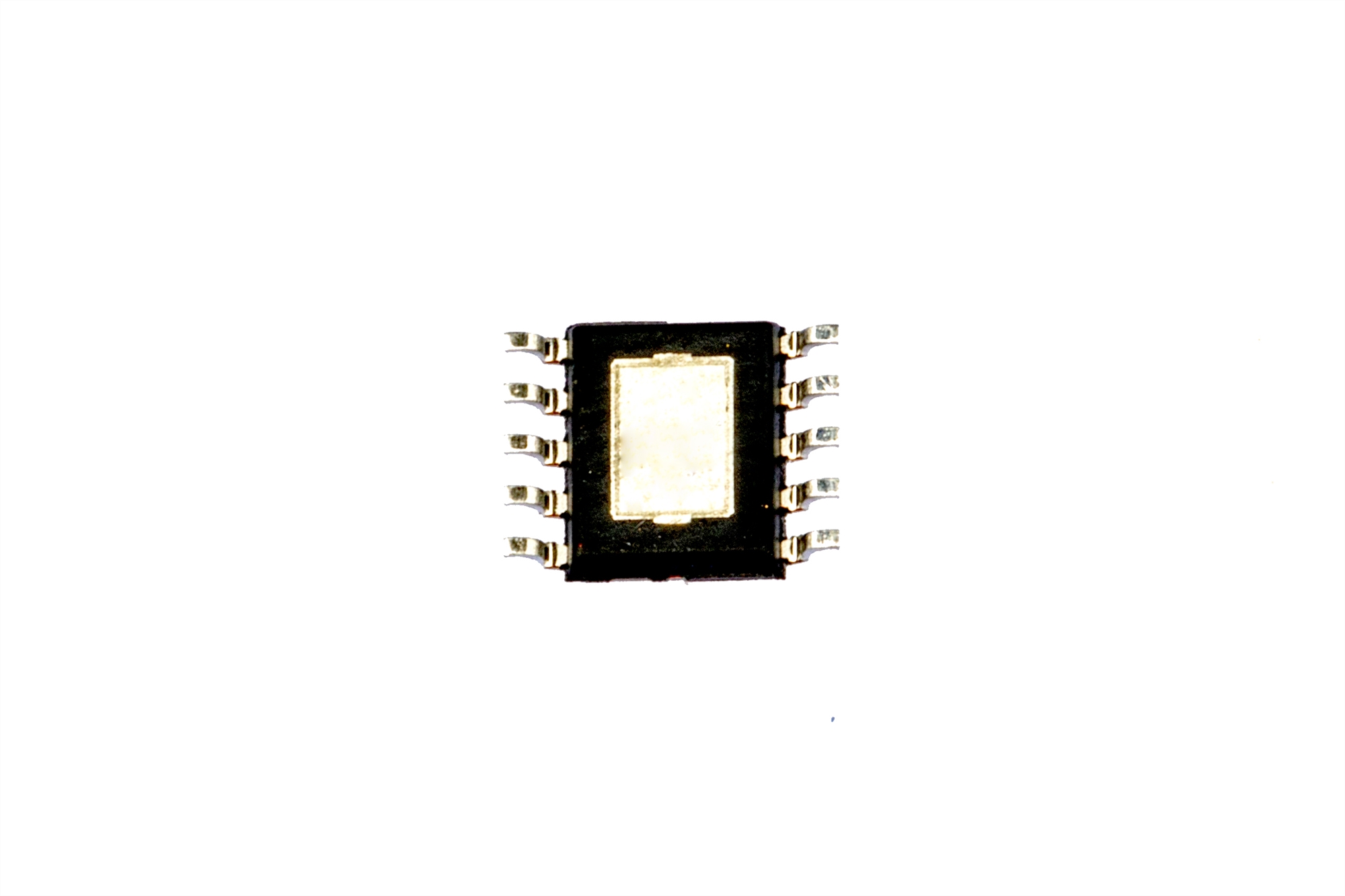

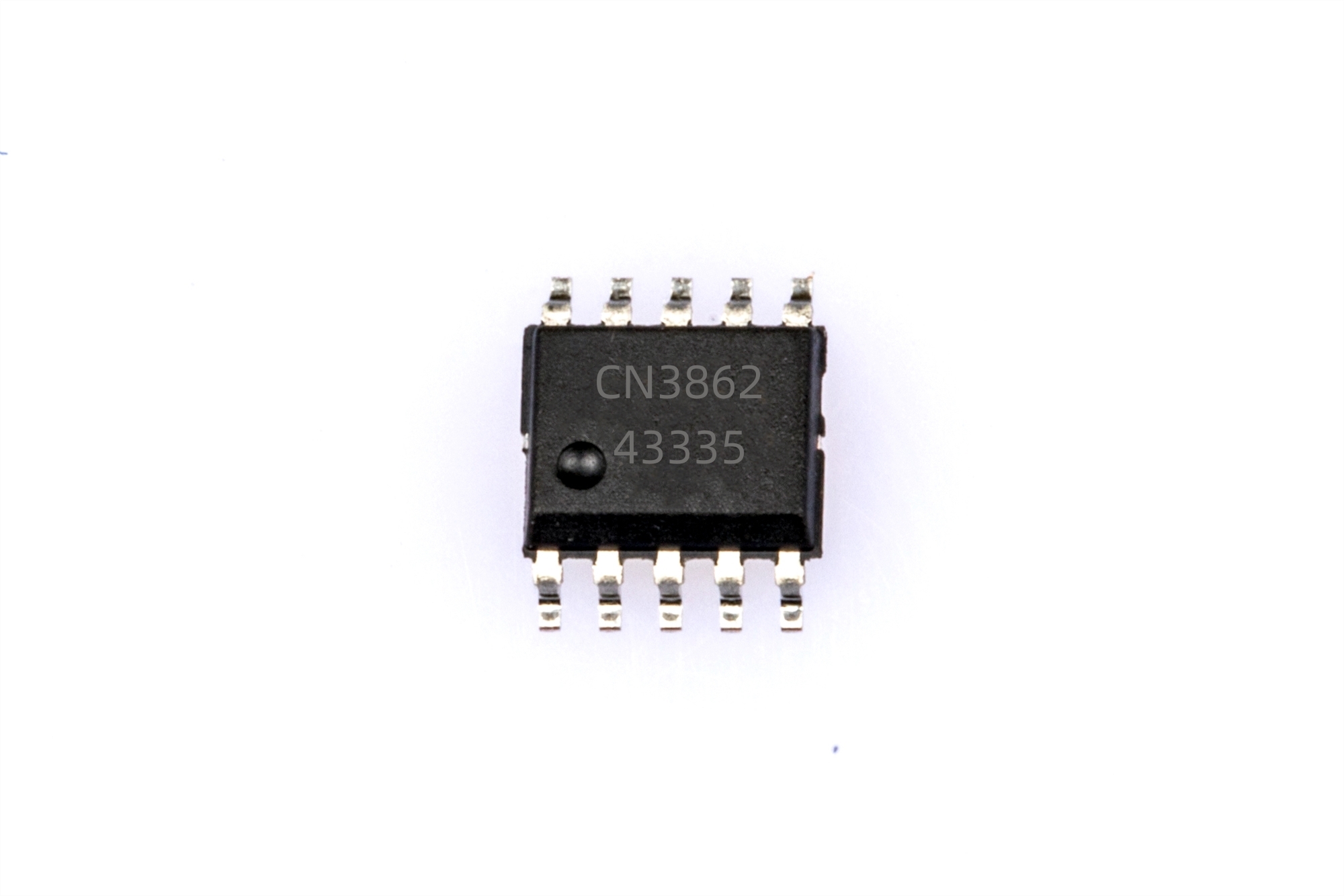

CN3862 is available in thermally-enhanced 10-pin SSOP package.



Applications:

l  Handheld Equipment

l  Emergency Lighting

l  Industrial and Medical Equipment

l  Electric Tools

Features:

l  Photovoltaic Cell Maximum Power Point Tracking

l  Standalone Charge Management for 2-cell Lithium-ion Battery

l  Wide Input Voltage: 6.5V to 32V

l  Charge Current up to 4A

l  PWM Switching Frequency: 550KHz

l  Regulation Voltage: 8.4V±1%

l  Charging Current is set with a current sense resistor

l  Automatic Conditioning of Deeply Discharged Batteries

l  100% Duty Cycle

l  Automatic Recharge

l  2 Open-drain Status Indication

l  JEITA-Compliant Battery Temperature Monitoring

l  Built-in Soft Start

l  Battery Over-voltage Protection

l  Operating Ambient Temperature
40 to 85

l  Available in eSSOP-10 Package

l  Pb-free, Rohs-Compliant, Halogen Free
