Product Introduction

Product parameters

Funtion:500mA Lithium Battery Charger IC

Opration Mode:Linear

Battery:single cell Li-ion and Li Polymer battery

Battery No.:1

Vout Range:0V-4.2V

Vin Range:3.8V - 6V

Max Charge Current:500mA

Operating Current:450uA

Solar Panel charge:No

Chip Temperature Regulation:Yes

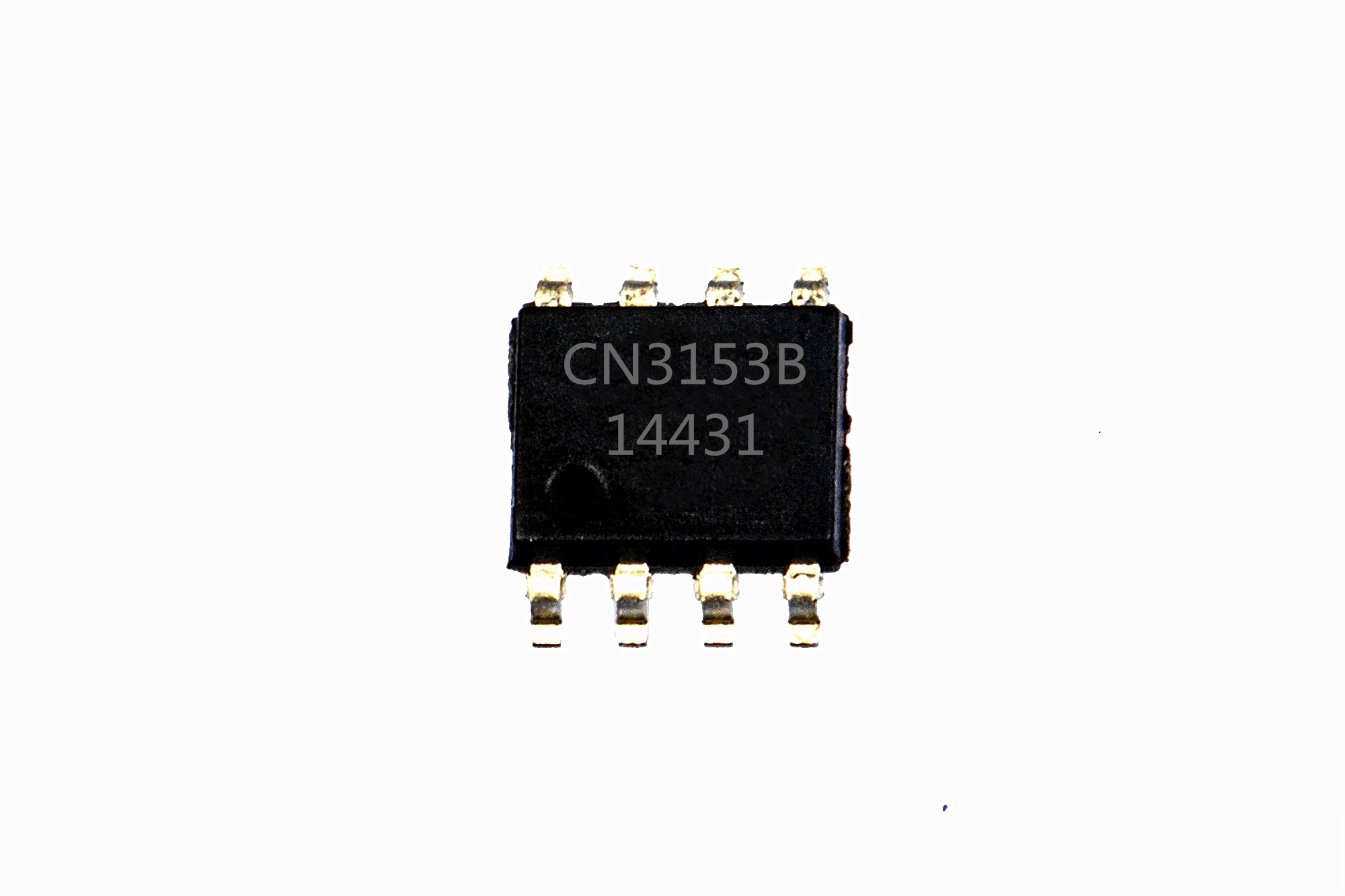

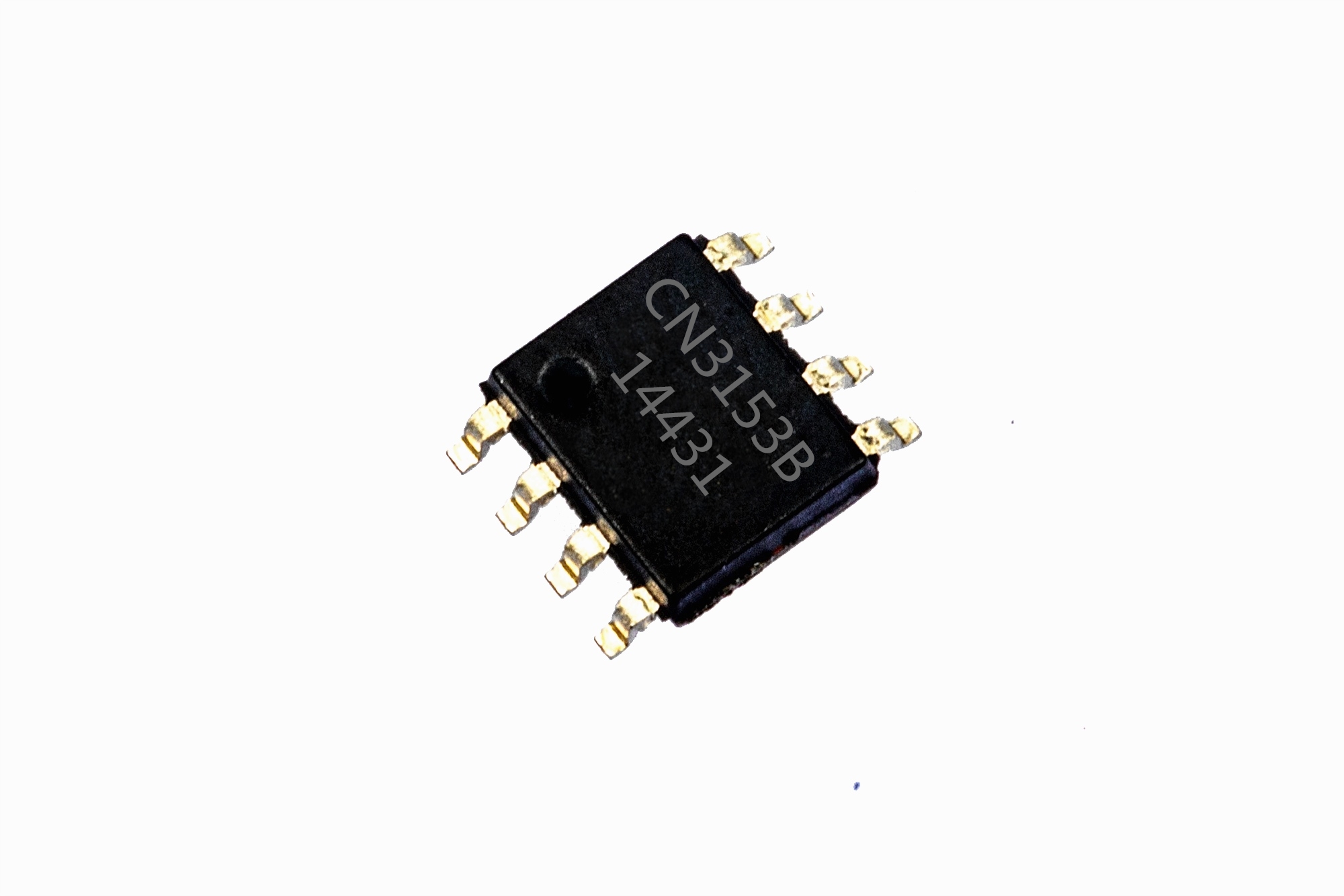

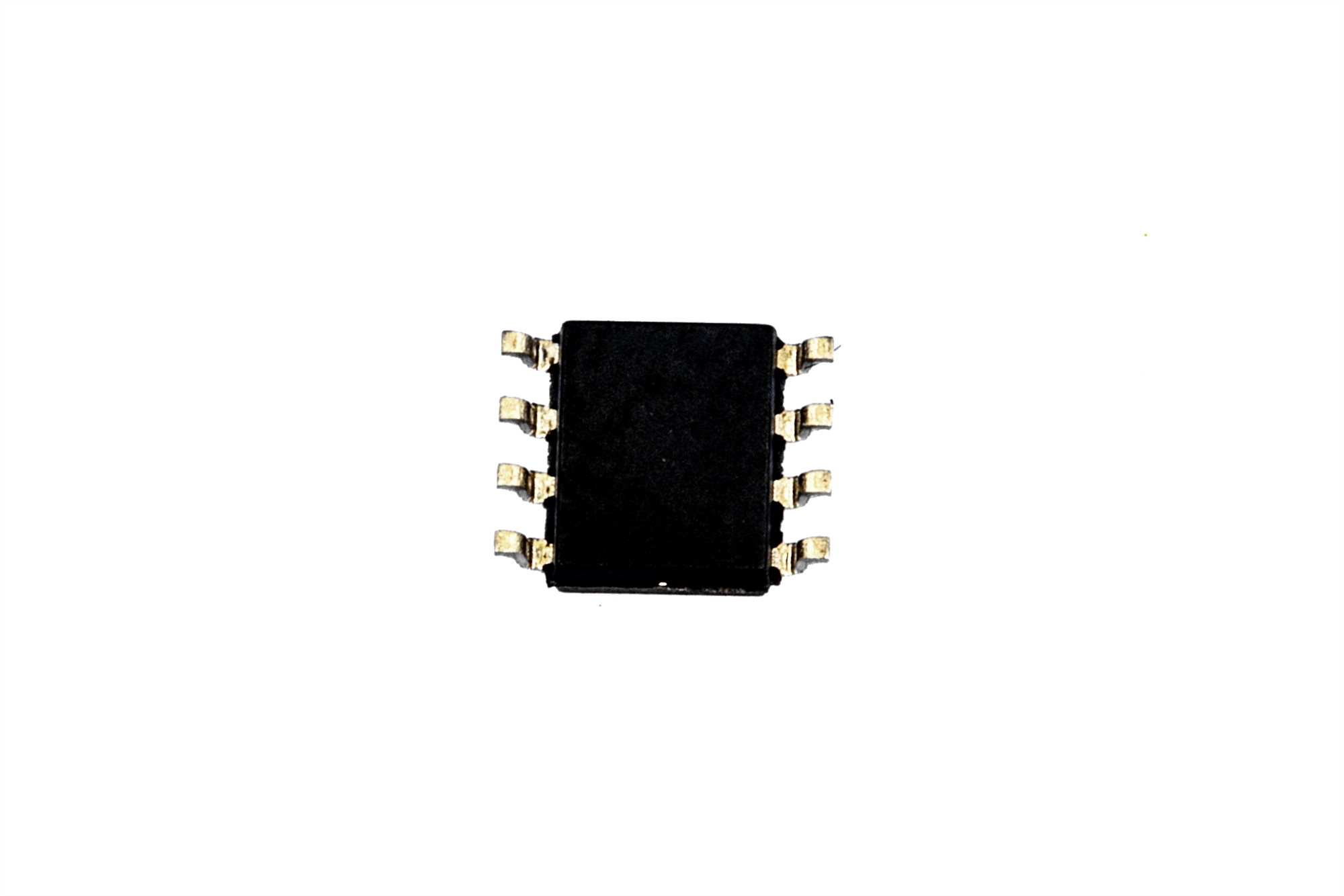

Package:SOP8

Chip Enable:No

On-chip Power MOSFET:Yes


General Description:

The CN3153B is a complete constant-current /constant voltage linear charger for single cell lithium rechargeable battery. The device contains an on-chip power MOSFET and eliminates the need for the external current sense resistor and blocking diode.  Its low external component count makes CN3153B ideally suited for portable applications.

Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The regulation voltage is internally fixed at 4.2V, it can also be adjusted with an external resistor. The charge current can be programmed externally with a single resistor. When the input supply is removed, the CN3153B automatically enters a low power sleep mode, dropping the battery drain current to less than 3uA. Other features include under-voltage lockout, automatic recharge and charging/termination indicator.

The CN3153B is available ordinary SOP package.





Applications:

l  Electronic Cigarette

l  Mobile Phones

l  Digital Still Cameras

l  MP4 Players

l  Electronic Dictionary

l  Portable Devices

l  Variety Of Chargers

Features:

l  On-chip Power MOSFET

l  No external Blocking Diode or Current Sense Resistors Required

l  Constant Charge Voltage 4.2V, and also can be adjusted by an external resistor

l  Precharge Conditioning for Reviving Deeply Discharged Cells and Minimizing Heat Dissipation During Initial Stage of Charge

l  Trickle Charge Current can be Selected

l  Can be used as a Voltage Source

l  Battery Short Circuit Protection

l  Programmable Continuous Charge Current Up to 500mA

l  Constant-Current/Constant-Voltage/Constant- Temperature Operation to Maximize Charge Rate Without Risk of Overheating

l  Automatic Low-Power Sleep Mode When Input Supply is Removed

l  Status Indication for LEDs or uP Interface

l  C/10 Charge Termination

l  Automatic Recharge

l  Pb-free, rohs compliant, halogen free
