Product Introduction

Product parameters

Funtion:5A, Standalone Li-ion Battery Charger

Opration Mode:Switch

Battery:4 cell li-ion battery

Battery No.:4

Vout Range:0V-16.8V

Vin Range:7.5V-28V

Max Charge Current:5A

Operating Current:1.95mA

Solar Panel charge:No

Chip Temperature Regulation:No


Switching Frequency:300kHz

Chip Enable:No

On-chip Power MOSFET:No

General Descriptions:

The CN3704 is a PWM switch-mode lithium ion battery charger controller for 4 cell li-ion battery in a small package using few external components.

The CN3704 is specially designed for charging lithium ion batteries with constant current and constant voltage mode. In constant voltage mode, the regulation voltage is fixed at 16.8V with ±1% accuracy. The constant charging current is programmable with a single sense resistor.

Deeply discharged batteries are automatically trickle charged at 15% of the programmed constant charging current until the cell voltage exceeds 11.2V. The charge cycle is terminated once the charging current drops to a level set by an on-chip resistor and an external resistor, and a new charge cycle automatically restarts if the battery voltage falls below 16V. CN3704 will automatically enter sleep mode when input voltage is lower than battery voltage.

Other features include undervoltage lockout, battery temperature monitoring and status indication, etc.

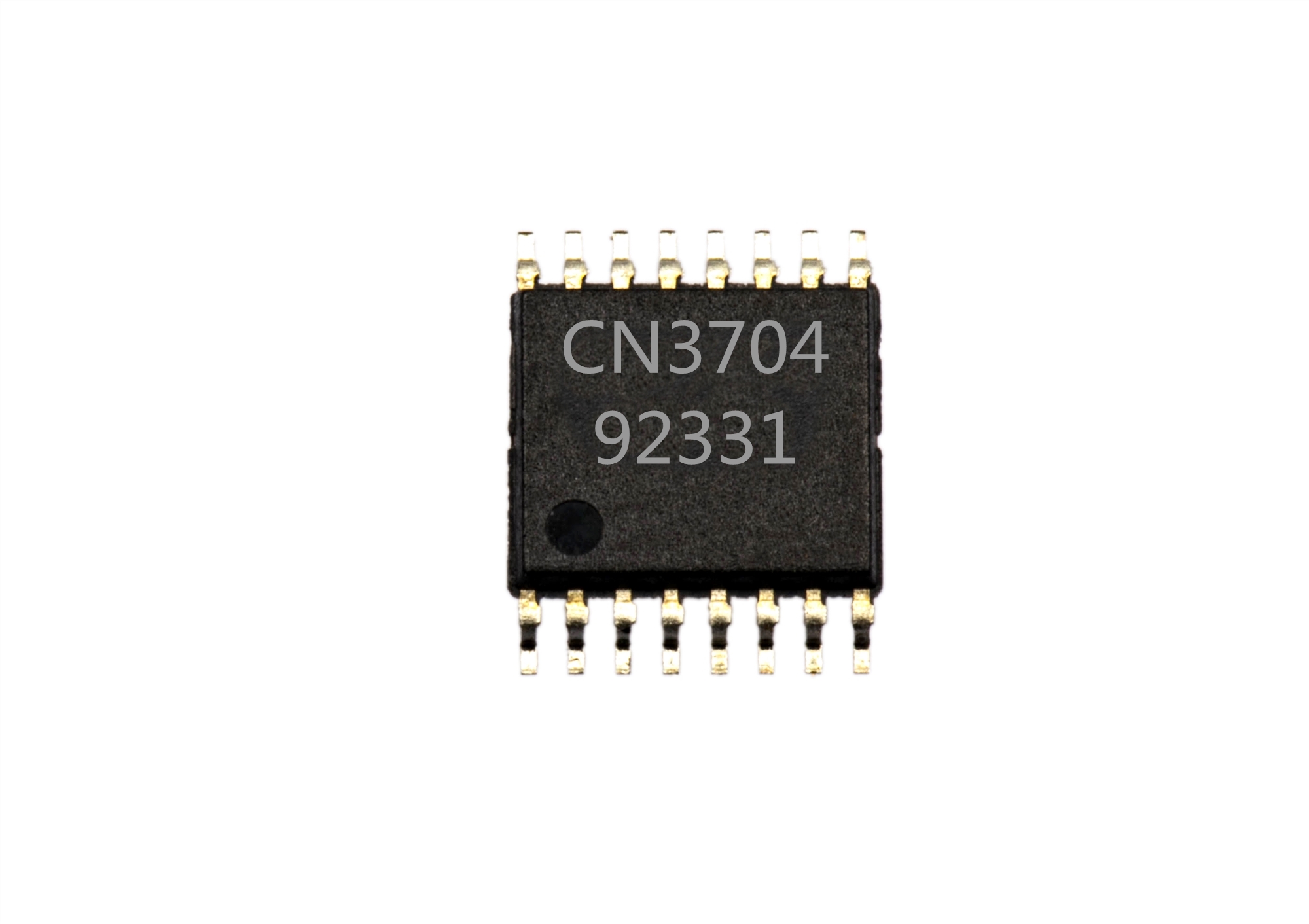

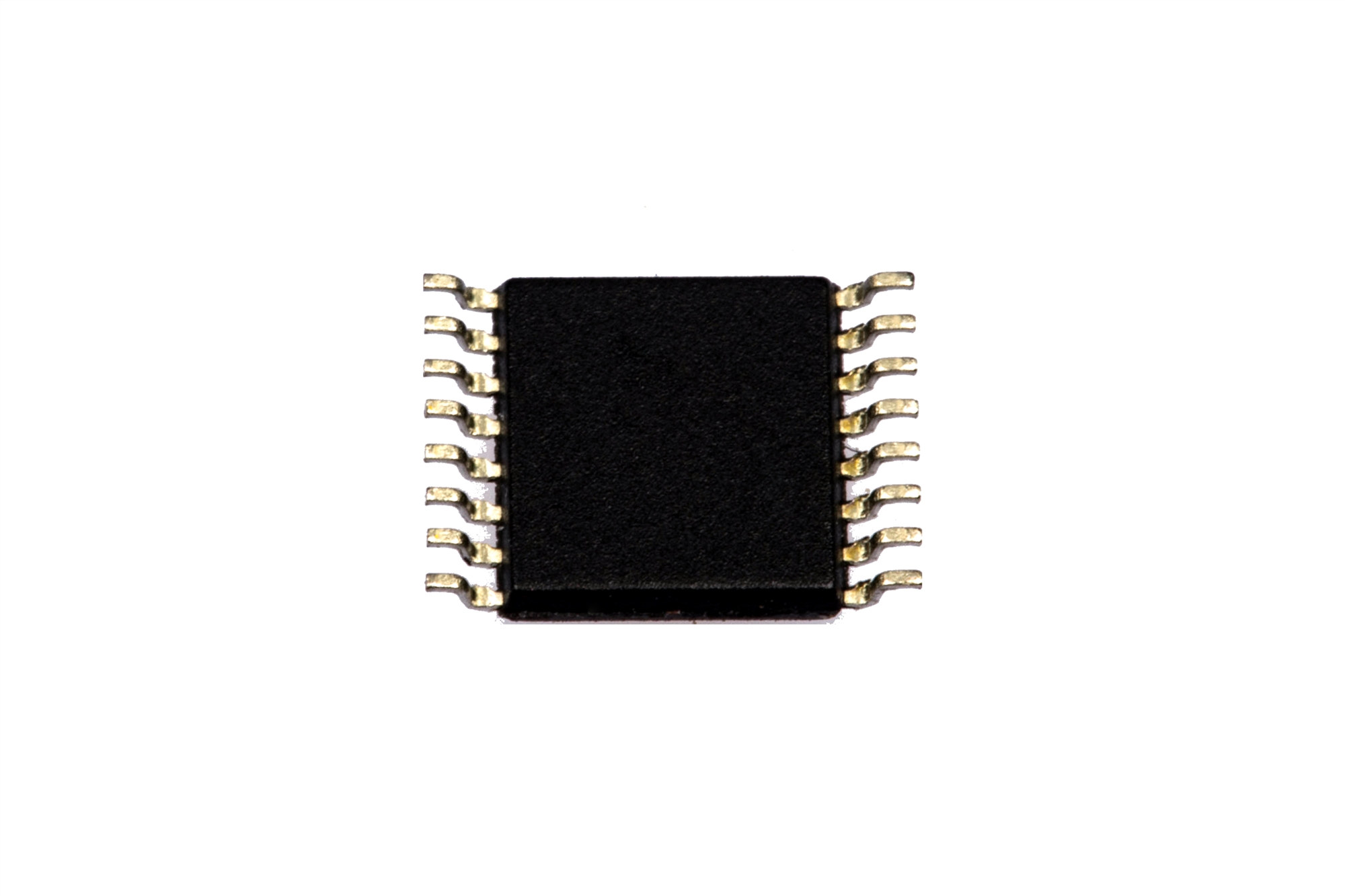

CN3704 is available in a space-saving 16-pin TSSOP package.


l  Notebook Computers

l  Model Plane

l  Battery-Backup Systems

l  Portable Industrial and
Medical Equipment

l  Standalone Battery Chargers



l  Wide Input Voltage: 7.5V to 28V

l  Complete Charger Controller for 4 cell Lithium-ion Battery

l  Charge Current Up to 5A

l  High PWM Switching Frequency: 300KHz

l  Constant Charging Voltage
Accuracy: ±1%

l  Charging Current is programmed
 with a sense resistor

l  Automatic Conditioning of Deeply Discharged Batteries

l  End-of-Charge Current can be set
 by an external resistor

l  Battery Temperature Monitoring

l  Automatic Recharge

l  Charger Status Indication

l  Soft Start

l  Battery Overvoltage Protection

l  Operating Ambient Temperature
40 to 85

l  Available in 16 Pin TSSOP Package

l  Pb-free , RoHS Compliant,
and Halogen Free
